EMC Design Rule Check
We will achieve the efficiency improvement of EMC design & management by the rule check method,
and offer the design milieu that shares technical know-how.
Point of EMC design rule check
We support SI & EMC design rule from the below 8 items.
« Total 39 rules »
| Guard Ring | Connection guard ring check |
|---|---|
| Bypass capacitor | Bypass capacitor check, EMC filter check |
| Return pass | Return pass check |
| Power GND | Check indication level of Power or GND pattern. |
| Cross talk | Check problems by cross-talk |
| Differential pattern | Check the differential pattern |
| High-speed signal | Check the high-speed signal and missing check by non-sensitive signal |
| Custom rule | Check the custom rule |

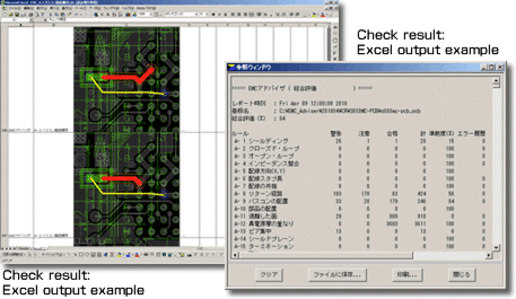

EMC design application case
We achieve a high-quality substrate design by applying the rule effectively in the design stage.
